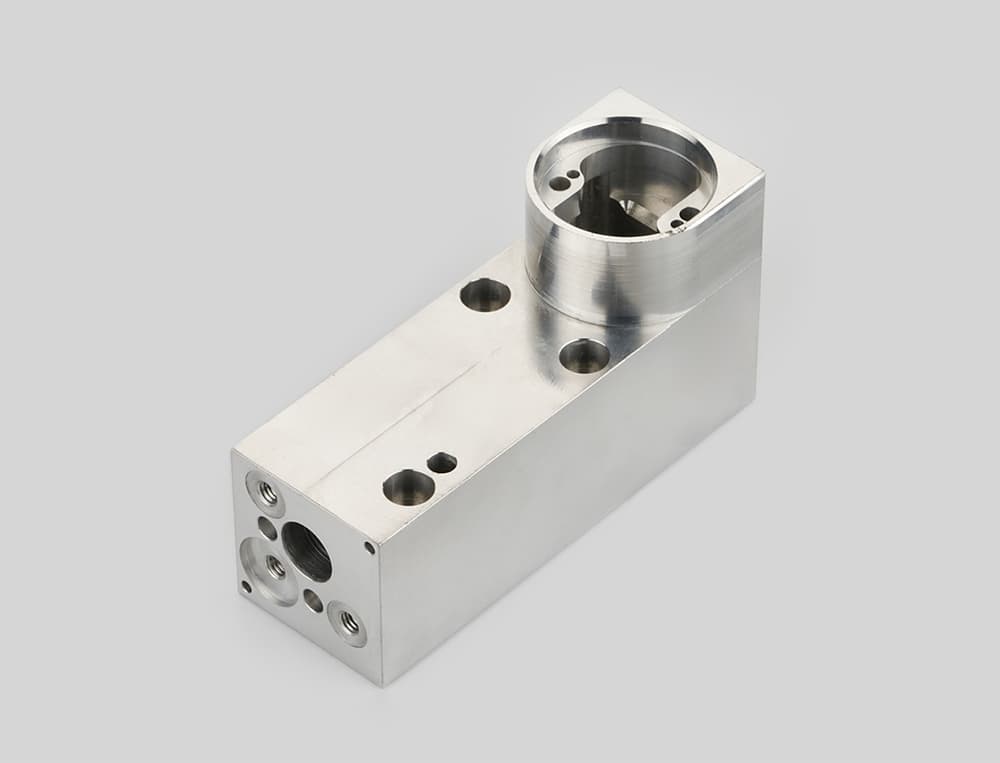

Measuring Instrument Parts
Measuring Instrument Parts
Material:
Processing different types of materials, including various metals (such as aluminum, steel, copper), plastics and composite materials.
Size:
OEM or ODM
Weight:
OEM or ODM
NC turning and milling composite processing-minimum tolerance:
≧0.005 mm (the same for turning and milling machines)
PrevProduct Description
Precision Machined Measuring Instrument Parts
High-Accuracy Measuring Components via CNC Milling
At Tung Jui Yih, we specialize in CNC milling machine processing for critical measuring instrument parts requiring micron-level precision and repeatability. Our advanced milling capabilities ensure components meet strict metrology standards.
Key Measuring Instrument Parts
1. Calibration Components
- Gauge blocks (Grade 00/0) with ±0.001mm parallelism
- Angle plates (cast iron/Granite) with 0.005mm/m flatness
- Surface plates with hand-scraped finishes
- Achieves optical-grade flatness (Ra0.1−0.4μm)
- Micro-step milling creates certified calibration surfaces
2. Linear Motion Systems
- Dovetail slides (hardened steel)
- Cross roller guides
- Linear encoder scales
- 5-axis simultaneous machining for ±0.002mm straightness
- Stress-relieved aluminum bases prevent thermal drift
3. Optical Instrument Frames
- Microscope stages (anodized aluminum)
- Interferometer mounts (Invar alloy)
- Lens barrel threads (brass/plastics)
- Ultra-fine pitch threads (0.25mm lead)
- Vibration-damping pocket milling
Our Measuring Instrument Milling Capabilities
| Feature | Specification |
|---|---|
| Position Accuracy | (ISO 10791-1) |
| Surface Finish | (mirror optional) |
| Material Range | Aluminum, stainless steel, ceramics |
| Smallest Feature | micro-channels |
Welcome to send us your drawings and technical specifications. Based on your product application and precision requirements, we can design the most suitable milling process and mass production solution for your project.
