Flow Meter Parts

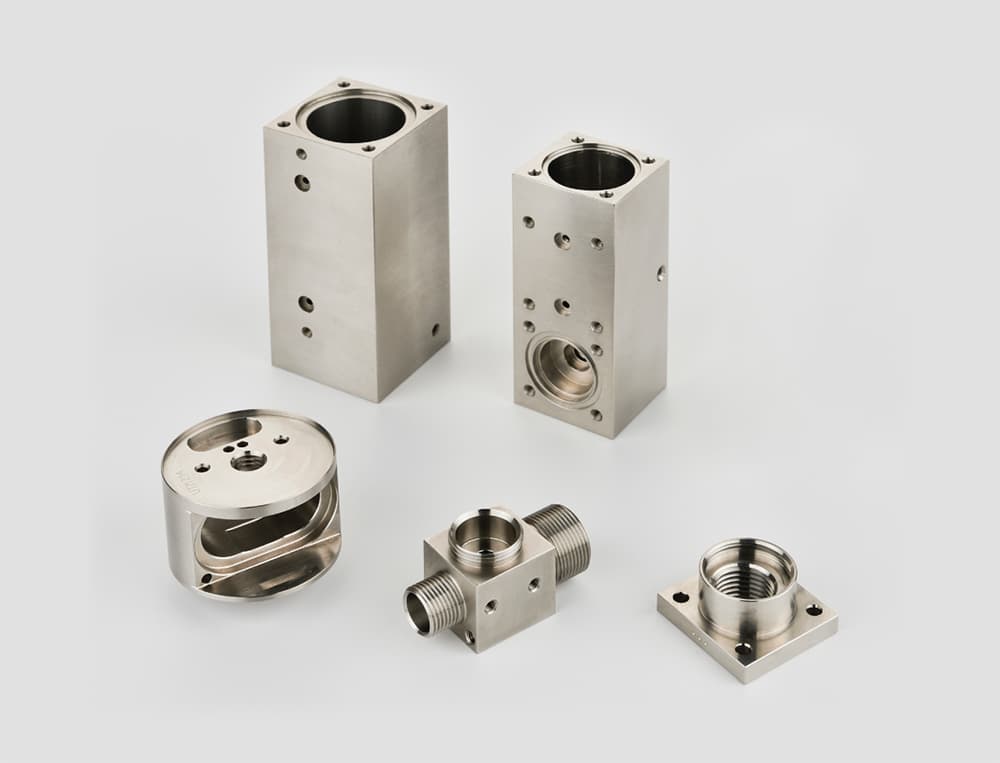

Flow Meter Parts Machined with Precision Milling

At Tung Jui Yih, we specialize in CNC milling machine processing for flow meter components, ensuring tight tolerances, smooth finishes, and long-term durability. Below are the key flow meter parts that can be efficiently manufactured using milling processes:

Flow Meter Parts Suitable for CNC Milling

1. Housing & Body Components

• Main meter bodies (aluminum, stainless steel, brass)
• Flange adapters (for pipe connections)
• Sensor mounting plates (precision-machined flatness)

• Complex internal channels & threaded ports can be machined in a single setup.
• Achieves ;R a ​ ≤1.6 µm surface finish for sealing surfaces.

2. Rotors & Impellers

• Turbine blades (stainless steel, PEEK)
• Paddle wheels (for ultrasonic/mechanical flow meters)
• 5-axis CNC ensures aerodynamic profiles with ±0.02 mm tolerances.
• Balanced designs reduce vibration and wear.

3. Internal Flow Channels & Nozzles

• Orifice plates (for differential pressure flow meters)
• Flow straighteners (to minimize turbulence)
• Precise bore diameters (down to ±0.01 mm) for accurate flow calibration.
• Smooth finishes (R a ​ ≤0.8 µm) prevent clogging.

4. Sensor & Electronics Integration

• Mounting brackets (for ultrasonic transducers)
• Signal processing enclosures (EMI-shielded designs)
• Integrated threads, slots, and cavities for seamless assembly.
• Watertight tolerances (IP67/IP68 compliance).

If you are looking for a Taiwan milling machining factory, CNC milling subcontractor, or a metal parts CNC machining partner, you are welcome to send us your drawings and technical specifications. Based on your product application and precision requirements, we can design the most suitable milling process and mass production solution for your project.
